Guide

xMap is a TypeScript library for working with source maps, stack trace parsing, and code formatting. It provides powerful tools for debugging, error reporting, and code visualization in CLI environments.

Features

• Source Map Processing: Parse, manipulate, and query source maps
• Stack Trace Parsing: Parse error stacks from V8, SpiderMonkey, and JavaScriptCore engines
• Code Formatting: Display code with line numbers and custom highlighting
• Syntax Highlighting: Semantic TypeScript code highlighting with customizable themes
• Error Visualization: Format code snippets with error indicators

Installation

To install the package, use npm or yarn:

npm install @remotex-labs/xmap

or

yarn add @remotex-labs/xmap

Optimizing Bundle Size

xMap supports subpath imports, allowing you to import only the specific components you need:

// Import only what you need
import { parseErrorStack } from '@remotex-labs/xmap/parser.component';
import { formatCode } from '@remotex-labs/xmap/formatter.component';
import { highlightCode } from '@remotex-labs/xmap/highlighter.component';
import { SourceService } from '@remotex-labs/xmap';

Key Components

SourceService

Process and query source maps to get original positions, concatenate maps, and retrieve code snippets.

import { SourceService, Bias } from '@remotex-labs/xmap';

// Create from JSON string
const sourceService = new SourceService(sourceMapJSON, 'bundle.js');

// Get original position for generated code
const originalPosition = sourceService.getPositionByGenerated(12, 34);

// Get position with code context
const positionWithCode = sourceService.getPositionWithCode(12, 34, Bias.LOWER_BOUND, {
  linesBefore: 2,
  linesAfter: 2
});

Understanding Bias

When querying source maps, the parameter controls how positions are matched: Bias

• Bias.BOUND - No directional preference; returns the first match found
• Bias.LOWER_BOUND - Prefers segments with column values ≤ the target
• Bias.UPPER_BOUND - Prefers segments with column values ≥ the target Bias.UPPER_BOUND

Example:

// Using different bias values for position lookup
const exactPosition = sourceService.getPosition(10, 15, Bias.BOUND);
const beforePosition = sourceService.getPosition(10, 15, Bias.LOWER_BOUND);
const afterPosition = sourceService.getPosition(10, 15, Bias.UPPER_BOUND);

Stack Trace Parser

Parse error stack traces from different JavaScript engines into a structured format.

import { parseErrorStack } from '@remotex-labs/xmap/parser.component';

try {
  throw new Error('Example error');
} catch (error) {
  const parsedStack = parseErrorStack(error);

  console.log(parsedStack.name);     // "Error"
  console.log(parsedStack.message);  // "Example error"

  // Access the first stack frame
  const frame = parsedStack.stack[0];
  console.log(frame.fileName);       // File where error occurred
  console.log(frame.line);           // Line number
  console.log(frame.functionName);   // Function name
}

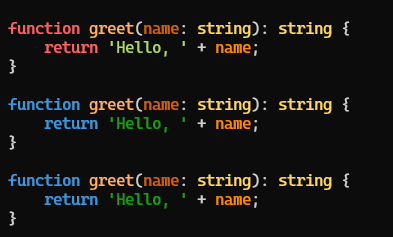

Code Highlighter

Apply semantic syntax highlighting to TypeScript code.

import { highlightCode } from '@remotex-labs/xmap/highlighter.component';

const code = `
function sum(a: number, b: number): number {
  return a + b;
}
`;

// Use default color scheme
const highlightedCode = highlightCode(code);

// Or customize with your own color scheme
const customScheme = {
    keywordColor: (text: string): string => `\x1b[36m${ text }\x1b[0m`,  // Blue for keywords
    stringColor: (text: string): string => `\x1b[32m${ text }\x1b[0m`,  // Blue for keywords
    numberColor: (text: string): string => `\x1b[31m${ text }\x1b[0m`  // Blue for keywords
};

const customHighlightedCode = highlightCode(code, customScheme);
console.log(customHighlightedCode)

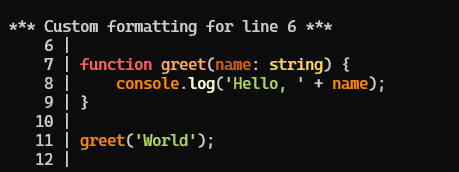

formatCode

The formatCode function formats a given code snippet, adding line numbers with customizable padding and enabling specific actions for particular lines. This utility is useful for displaying code snippets in a user-friendly manner, particularly in documentation or debugging scenarios.

import { formatCode } from '@remotex-labs/xmap/formatter.component';
import { highlightCode } from '@remotex-labs/xmap/highlighter.component';

const code = `
function greet(name: string) {
  console.log('Hello, ' + name);
}

greet('World');
`;

// Format with custom options
const formattedCode = formatCode(highlightCode(code), {
    padding: 8,         // Padding for line numbers
    startLine: 1,       // Starting line number
    action: {
        triggerLine: 3,   // Line to apply custom formatting
        callback: (lineString, padding, lineNumber) => {
            return `*** Line ${ lineNumber } ***\n${ lineString }`;
        }
    }
});

console.log(formattedCode);

import { formatErrorCode } from '@remotex-labs/xmap/formatter.component';

const sourcePosition = {
    code: 'function divide(a, b) {\n  return a / b;\n}',
    line: 2,
    column: 13,
    startLine: 1,
    endLine: 0,
    name: null,
    source: '',
    sourceRoot: null,
    sourceIndex: 0,
    generatedLine: 0,
    generatedColumn: 0
};

// Format with error indicator
const formattedError = formatErrorCode(sourcePosition, {
    color: (text) => `\x1b[31m${ text }\x1b[0m`  // Red color for error indicator
});

console.log(formattedError)

Practical Examples

Working with Source Maps and Errors

import { SourceService, Bias } from '@remotex-labs/xmap';
import { parseErrorStack } from '@remotex-labs/xmap/parser.component';
import { formatErrorCode } from '@remotex-labs/xmap/formatter.component';
import { highlightCode } from '@remotex-labs/xmap/highlighter.component';

try {
    // Code that throws an error
    throw new Error('Something went wrong');
} catch (error) {
    // Parse the error stack
    const parsedStack = parseErrorStack(error);

    // Get the top frame
    const frame = parsedStack.stack[0];

    if (frame.fileName && frame.line && frame.column) {
        // Initialize source service with your source map
        const sourceService = new SourceService(sourceMapJSON);

        // Get original position with code
        const position = sourceService.getPositionWithCode(
            frame.line,
            frame.column,
            Bias.LOWER_BOUND,
            { linesBefore: 2, linesAfter: 2 }
        );

        if (position) {
            // Apply syntax highlighting
            position.code = highlightCode(position.code);

            // Format with error indicator
            const formattedError = formatErrorCode(position, {
                color: (text) => `\x1b[31m${ text }\x1b[0m`
            });

            console.log('Error occurred:');
            console.log(formattedError);
        }
    }
}

import { SourceService } from '@remotex-labs/xmap';

const sourceMapJSON = `
{
  "version": 3,
  "sources": ["../src/core/core.component.ts", "../src/index.ts"],
  "sourceRoot": "https://github.com/remotex-lab/xmap/tree/test/",
  "sourcesContent": ["export class CoreModule {\\r\\n    private name: string;\\r\\n\\r\\n    constructor(name: string) {\\r\\n        this.name = name;\\r\\n    }\\r\\n\\r\\n    public greet(): string {\\r\\n        return \`Hello from \${ this.name }!\`;\\r\\n    }\\r\\n}", "import { CoreModule } from '@core/core.component';\\r\\n\\r\\nconst coreInstance = new CoreModule('Core Module');\\r\\n\\r\\nconsole.log(coreInstance.greet());"],
  "mappings": "aAAO,IAAMA,EAAN,KAAiB,CACZ,KAER,YAAYC,EAAc,CACtB,KAAK,KAAOA,CAChB,CAEO,OAAgB,CACnB,MAAO,cAAc,KAAK,IAAI,GAClC,CACJ,ECRA,IAAMC,EAAe,IAAIC,EAAW,aAAa,EAEjD,QAAQ,IAAID,EAAa,MAAM,CAAC",
  "names": ["CoreModule", "name", "coreInstance", "CoreModule"]
}
`;
const sourceService = new SourceService(sourceMapJSON, 'bundle.js');
console.log(sourceService);

const position = sourceService.getPositionByOriginal(3, 7, 'index.ts');
console.log(position);

const positionWithCode = sourceService.getPositionWithCode(1, 104, 1, { linesBefore: 2, linesAfter: 2 });
console.log(positionWithCode);
